Primitive Geometries: Six Shapes in One Scene

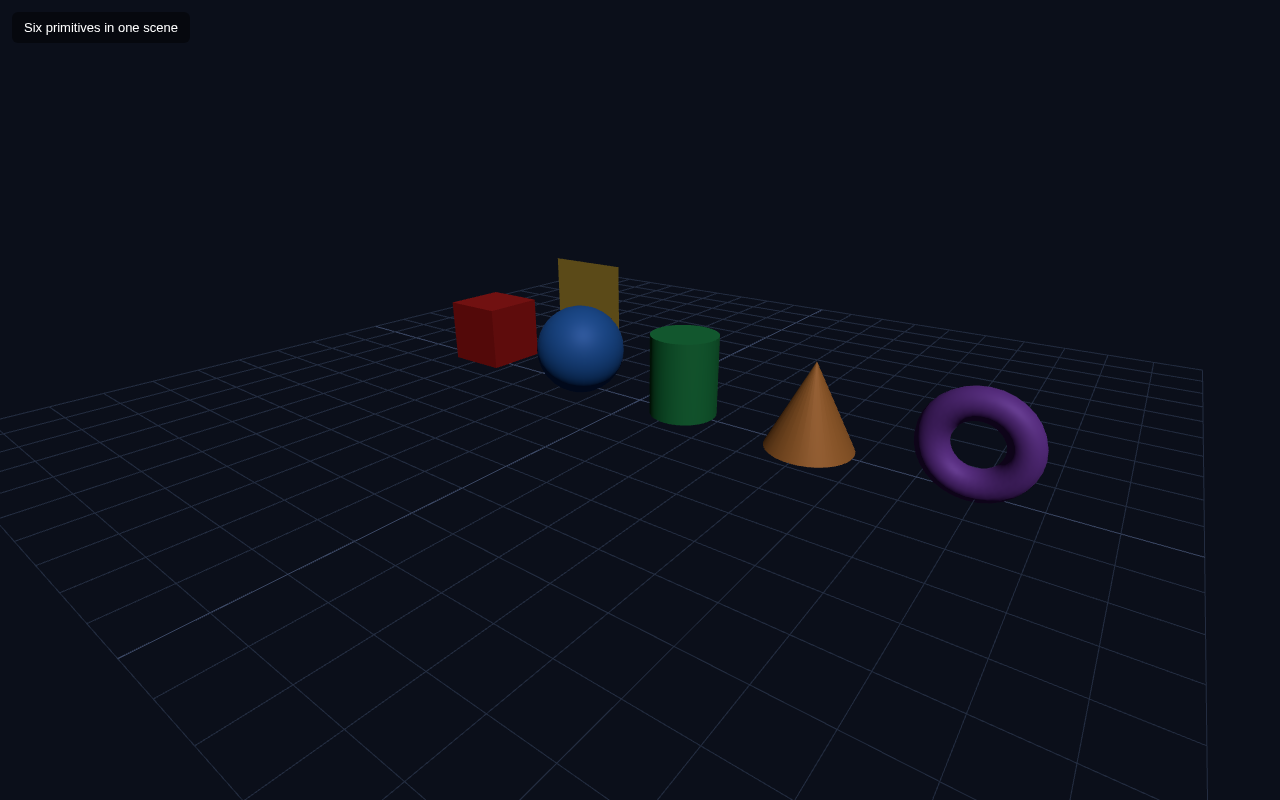

Six primitive shapes in a Three.js scene

Modeling starts here. Three.js ships a set of built-in primitive geometries — simple, ready-made shapes you can use as building blocks for anything. In this lesson you place six of them side by side in a single scene: box, sphere, cylinder, cone, torus and plane.

The Six Primitives

Each geometry is constructed with parameters that describe its size:

Geometry	Constructor	Notes
Box	`BoxGeometry(w, h, d)`	rectangular solid
Sphere	`SphereGeometry(r, segmentsW, segmentsH)`	smooth ball
Cylinder	`CylinderGeometry(radiusTop, radiusBottom, h, segments)`	tube or pole
Cone	`ConeGeometry(radius, h, segments)`	pointed cone
Torus	`TorusGeometry(radius, tube, radialSeg, tubularSeg)`	donut ring
Plane	`PlaneGeometry(w, h)`	flat 2D square

A grid of segments makes a shape smoother (more triangles) at a small cost of performance — 32 is plenty for a smooth sphere.

Full Example

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Three.js – Primitive Geometries</title>
  <style>body{margin:0;overflow:hidden;background:#0b0f1a}
    #ui{position:absolute;top:12px;left:12px;color:#fff;font:13px sans-serif;z-index:10;background:rgba(0,0,0,.45);padding:8px 12px;border-radius:6px}</style>
</head>
<body>
  <div id="ui">Six primitives in one scene</div>
  <script type="importmap">
    { "imports": {
        "three": "https://unpkg.com/three@0.160.0/build/three.module.js",
        "three/addons/": "https://unpkg.com/three@0.160.0/examples/jsm/"
    } }
  </script>
  <script type="module">
    import * as THREE from 'three';
    const scene = new THREE.Scene();
    scene.background = new THREE.Color(0x0b0f1a);
    const camera = new THREE.PerspectiveCamera(60, innerWidth / innerHeight, 0.1, 1000);
    camera.position.set(6, 4, 8);
    camera.lookAt(0, 0, 0);
    const renderer = new THREE.WebGLRenderer({ antialias: true });
    renderer.setSize(innerWidth, innerHeight);
    document.body.appendChild(renderer.domElement);
    scene.add(new THREE.AmbientLight(0x404040));
    const dir = new THREE.DirectionalLight(0xffffff, 1);
    dir.position.set(4, 6, 3);
    scene.add(dir);
    scene.add(new THREE.GridHelper(14, 20, 0x3a4763, 0x232c40));
    const shapes = [
      { geo: new THREE.BoxGeometry(1, 1, 1),                   x: -3.2 },
      { geo: new THREE.SphereGeometry(0.7, 32, 16),            x: -1.2 },
      { geo: new THREE.CylinderGeometry(0.5, 0.5, 1.2, 32),    x: 0.8 },
      { geo: new THREE.ConeGeometry(0.6, 1.2, 32),             x: 2.8 },
      { geo: new THREE.TorusGeometry(0.5, 0.2, 16, 32),        x: 4.8 },
      { geo: new THREE.PlaneGeometry(1.6, 1.6),                x: -3.2, z: -2.5 }
    ];
    const colors = [0xe02424, 0x2f80ed, 0x27ae60, 0xf2994a, 0x9b51e0, 0xf2c94c];
    shapes.forEach((s, i) => {
      const mat = new THREE.MeshStandardMaterial({ color: colors[i], metalness: 0.2, roughness: 0.6 });
      const mesh = new THREE.Mesh(s.geo, mat);
      mesh.position.set(s.x, 0.6, s.z || 0);
      scene.add(mesh);
    });    function animate() {
      requestAnimationFrame(animate);
      renderer.render(scene, camera);
    }
    animate();
  </script>
</body>
</html>

How the Scene Comes Together

The example keeps the lesson-1 skeleton and handles the six shapes as data. Each entry in the shapes array holds a geometry and a target x (and optional z) position. A forEach loop builds a MeshStandardMaterial with a distinct colour, binds each geometry to it, positions it, and adds it to the scene.

This "array of things to build" pattern is extremely useful — instead of writing six blocks of near-identical code, you describe six rows and let a loop do the work. It is also exactly how the scene graph in a later lesson (the solar system) gets more elaborate.

Notice the plane is positioned with z: -2.5 through the s.z || 0 fallback, so it sits behind the other shapes rather than overlapping. Any shape that has no z uses 0.

Try It Yourself

Change SphereGeometry(0.7, 32, 16) to (0.7, 8, 6) — it becomes visibly faceted, a low-poly sphere.
Make the torus bigger: TorusGeometry(0.7, 0.3, 16, 32).
Add a seventh shape, e.g. TetrahedronGeometry(0.8) or DodecahedronGeometry(0.8).
Rotate the scene in the browser if you added OrbitControls, or just change the camera position to view the shapes from another angle.

Summary

Primitive geometries are the ready-made building blocks of Three.js modeling. You learned the main ones, how their parameters control size and smoothness, and a clean loop-based pattern for filling a scene with many objects.

Next Lesson

All six shapes currently share the same kind of material. The next lesson explores materials themselves — how Basic, Lambert and Standard differ, and why Standard needs lights while Basic ignores them.
